Woodworking professionals’ surveys indicate that 83% of furniture manufacturers depend on dowel joints for critical structural connections. Egyptian furniture makers employed this ancient method, which is also in use for today’s woodshops. What makes these plain wooden pegs so enduring? How can learning dowel joints transform your projects? Let’s explore the versatility and strength of dowel joinery.
What Are Dowel Joints?

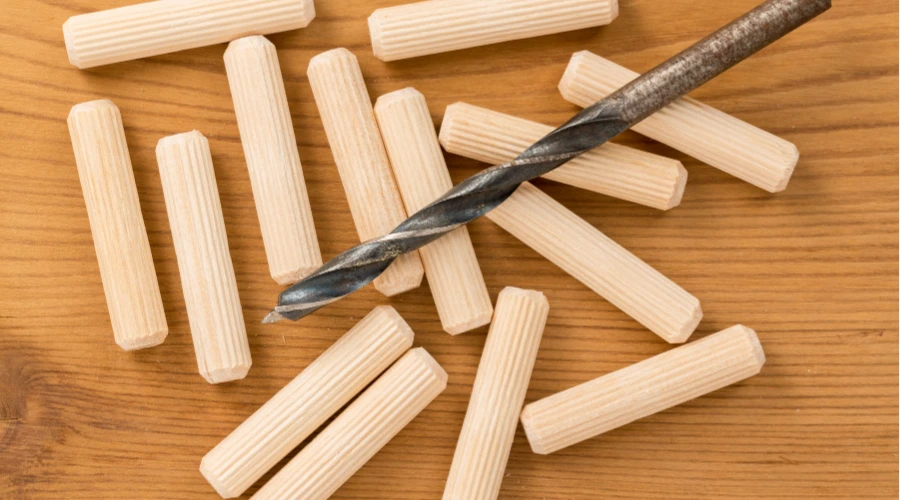

Dowelling joints connect two pieces of wood with cylindrical wooden pegs called dowels. The dowels are joined into matching holes drilled into both wood pieces to make a strong connection. Dowel joints can be described as internal wooden screws that align and strengthen the joint of the wood components.
Woodworkers have used dowel joints for centuries, creating strong, hidden connections. This technique is best for edge-to-edge, end-to-face, and corner joints for boards. Unlike metal fasteners, dowels provide significant structural integrity while keeping the natural look of wooden furniture.
Types of Dowel Joints
Woodworkers use several types of dowel joints for different applications:
Plain Dowel Joint
The plain dowel joint represents the standard configuration. It features straight, cylindrical dowels inserted into matching holes in both workpieces. This joint works well for basic connections like bottom joints and edge-to-edge joints. Woodworkers commonly use plain dowel joints in cabinet construction, shelving, and table assembly.
Multi-Dowel Joint
Multi-dowel joints use several dowels placed in a row or pattern to distribute load across a wider area. This configuration creates stronger connections for heavy-duty applications. Bed frames, large tables, and structural furniture components benefit from multi-dowel joints. The additional dowels prevent twisting and increase overall joint strength.
Decorative Dowel Joint
Decorative dowel joints leave the dowel ends exposed as a part of the design. Woodworkers sometimes also use contrasting wood species for these dowels for visual interest. Mission furniture, Arts and Crafts styles, and contemporary furniture are common applications. These joints are both functional and visually attractive.
Blind Dowel Joint
A blind dowel joint hides the dowels entirely within the joined workpieces, giving a clean appearance with no visible fasteners. Fine furniture makers favor sturdy dowel joints on upscale items where appearance is important, and the blind version provides a good look. As the dowels need to be hidden, you need to control the depth when drilling accurately.
Reinforced Miter Dowel Joint
Reinforced miter dowel joints add strength to miter corners. Woodworkers place dowels perpendicular to the miter line to prevent the joint from separating. Picture frames, box corners, and cabinet doors often use this joint type. The dowels significantly strengthen what would otherwise be a weak glue-only connection.
The Tools to Make Dowel Joints
Creating dowel joints requires specific tools:
Essential Tools
- Drill: A power drill or drill press provides the force to create precise holes.
- Brad-point bits: These specialized drill bits create clean, accurate holes with minimal tear-out.
- Dowel jig: This alignment tool ensures that matching holes line up perfectly between workpieces.
- Dowel centers: Metal pins that transfer hole locations from one piece to another.
- Ruler and pencil: This marks dowel locations and measure proper spacing.
- Clamps: To hold pieces together during layout and assembly.
Optional Tools
- Dowel plate: A hardened steel plate with precision holes for making custom dowels.
- Dowel cutting jig: Helps cut dowels to precise lengths consistently.
- Depth stop: Attaches to drill bits to control hole depth.
- Chamfer tool: Creates a slight bevel on dowel ends for easier insertion.
How to Make a Dowel Joint?
Follow these steps to create strong dowel joints:
- Mark dowel locations: Determine where dowels should go and mark center points clearly on both workpieces.
- Set up the dowel jig: Attach it to the first workpiece, aligning it with your marked locations.
- Drill the first set of holes: Use a brad-point bit with a depth stop. Drill holes slightly deeper than half the dowel length.
- Transfer hole locations: Use dowel centers or the jig to mark matching hole positions on the second workpiece.
- Drill matching holes: Set up the jig on the second piece and drill matching holes.
- Test fit of the joint: Dry-assemble the joint with dowels to verify proper alignment. Make adjustments if needed.
- Prepare for joining: Clean the holes with compressed air or a small brush to remove sawdust.
- Apply glue: Place a small amount of wood glue in each hole and spread a thin layer on the joining surfaces.
- Insert dowels: Tap dowels into one workpiece until they extend halfway.
- Complete assembly: Join the piecer, aligning the dowels with matching holes.
- Clamp and wait: Apply even clamping pressure and allow the glue to dry completely.
- Clean excess glue: Remove dried glue with a chisel or sandpaper after clamping.
For best results, use dowels approximately 1/3 the thickness of your workpiece. Space multiple dowels at least 2 inches apart for proper strength without weakening the wood.
Advantages and Disadvantages of Dowel Joints
Advantages of Dowel Joints
- Strength: Creates stronger joints than basic butt joints or nails alone.
- Appearance: Provides clean, fastener-free looks when using blind dowel joints.
- Alignment: Helps perfectly align workpieces during assembly.
- Accessibility: Requires fewer specialized tools than mortise and tenon or dovetail joints.
- Versatility: Works for many different joint types and applications.
Disadvantages of Dowel Joints
- Precision requirements: Demands accurate hole alignment for proper fit.
- Time-consuming: It takes longer than simple screws or nails.
- Tool dependent: Requires a dowel jig for consistent results.
- Limited joint strength: Not as strong as mortise and tenon for certain applications.
- Moisture sensitivity: Can weaken if dowels expand and contract differently than the surrounding wood.
- Repair difficulty: It is challenging to disassemble for repairs compared to mechanical fasteners.
Applications of Dowel Joints
Dowel joints excel in numerous woodworking applications:
Furniture Construction
Dowel joints benefit cabinets, tables, chairs, and bed frames with strength and a clean appearance. The technique particularly suits frame construction where components meet at angles. Modern furniture makers combine dowels with glue for long-lasting joints without visible fasteners.
Shelving
Wall shelves and bookcase assemblies connect vertical supports with horizontal shelves with dowel joints. The dowels prevent shelves from sagging under load. This application often employs multiple dowels per connection for maximum strength.
Door Assembling
Cabinet doors and panel doors incorporate dowel joints to connect rails and stiles. The technique maintains proper alignment while allowing for wood movement. Door assemblies require precise dowel placement for appropriate operation.
Edge Joining
Woodworkers join boards edge-to-edge to create wider panels using dowel reinforcement. This application prevents the boards from sliding during glue-up and adds strength across the joint. Table tops and cabinet sides commonly use this technique.
Conclusion
Dowel joints strike the ideal balance between strength, looks, and availability for makers of any skill level. These tools are perfect for every project, from simple shelves to complex furniture pieces. They take some practice to get right, but the results are worth it. These joints should be part of your work as you hone your craft. Ready to improve your joinery skills? Take a basic dowel jig, practice on some scrap wood, and know why generations of woodworkers have relied on this effective connection method.
