Aggregates in construction are critical. They determine the strength, durability, and quality of concrete and asphalt. Within these several types of aggregate, however, one type stands out: irregular aggregate. These aggregates are non-uniform in shape and texture. This affects their performance in a construction project. This article will outline and discuss irregular aggregates. It will cover their properties, applications, and how they compare with other aggregates.
What are Irregular Aggregates?
Irregular aggregates consist of gravel and pit sands. They are partly shaped by natural wear. They usually yield about 35% voids. This lowers its workability when compared with the rounded aggregate. They provide marginally better strength, though not good enough for high-strength concrete applications.
How the Irregular Aggregates Differ from Other Aggregates
Aggregates are present in several forms: rounded, angular, and irregular. Each type has specific characteristics. They justify its use in specific construction branches. To explain the pros and cons of irregular aggregates, we must compare them to other types.
| Property | Irregular Aggregates | Rounded Aggregates | Angular Aggregates |
| Shape | Angular and uneven | Smooth and rounded | Highly angular and sharp |
| Surface Texture | Rough | Smooth | Very rough |
| Void Content | 35% | 32 – 33% | 38 – 40% |
| Water Absorption | 2-3% | 1-2% | 3-4% |
| Workability | Medium | High | Low |
| Strength | Moderate | Low | High |
The irregular shape of the aggregates improves interlocking. It is better than round aggregates. But, their strength is not as good as the angular aggregates. Such irregular aggregates often have moderate water absorption. So, they are useful where moisture retention is needed.
Types of Irregular Aggregates
There are two types of irregular aggregates: natural and manufactured. They differ in origin and formation.

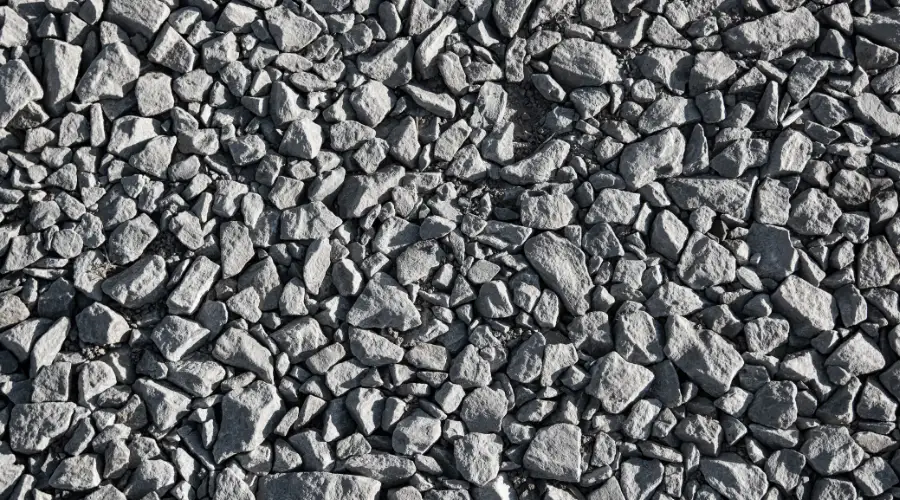

Natural Irregular Aggregates
Natural irregular aggregates are those made by nature, like weathering, erosion, or sedimentation. These aggregates are usually extracted from quarries, river beds, and gravel pits. These are naturally occurring aggregates. Their shape and size could vary. They are partly rounded by attrition. Their angularity remains due to limited water erosion.
Manufactured Irregular Aggregates
Manufactured irregular aggregates are produced by crushing larger rocks into smaller, irregular pieces. This can control the size and shape of the aggregate particles in the process that makes them. Several crushers, like jaw and impact crushers, can develop particle size. These aggregates are often needed for construction. They require certain grading and size distributions.
Properties of Irregular Aggregates
Irregular aggregates have many unique properties. They affect performance in construction.
Shape and Surface Texture
Irregular aggregates are defined by their angular shape and rough texture. These are features from natural processes or mechanical crushing. They leave the material’s edges sharp. The pointed shapes of uneven aggregates allow them to interlock. This feature is vital for strong structures.
Size and Grading
The size of irregular aggregates normally ranges from 10 mm to 40 mm. Aggregates are usually graded. This classifies materials by size distribution. Normally, sieve analysis is among the common methods of aggregate grading. Proper grading is essential. It maximizes the strength and durability of construction materials. The aggregates must fit and interlock in a dense matrix.
Strength and Durability
Irregular aggregates are weaker than angular ones. But, they are strong enough for many general applications. Their compressive strength is usually 20 to 35 MPa, depending on the material and use. Their low abrasion resistance makes the aggregates unsuitable for high-wear uses, like busy roads.
| Property | Value |
| Compressive Strength | 20-35 MPa |
| Abrasion Resistance | Moderate |
| Void Content | 35% |
| Water Absorption | 2-3% |
Applications of Irregular Aggregates
The main use of irregular aggregates in construction is in tasks that need interlocking and some strength.
Use in Concrete Production
The main application of irregular aggregates is for concrete manufacturing. Their angular shape helps them bond well with cement. This yields better shear strength. Its higher void content may require more of it. This could raise the material cost. The only drawback of the irregular aggregates is their limited bonding strength. They are fine for normal concrete. But, they cannot be used in high-strength concretes.
Role in Road Construction
Irregular aggregates have wide applications in the construction of roads. Their rough, angular shape lets them interlock. This resists movement under load. These materials are suitable for use in the sub-base and base layers of roads, where load distribution is crucial. However, their moderate durability limits them to low- to medium-traffic roads.
Applications in Landscaping and Decorative Projects
Aggregates of irregular shapes for aesthetic reasons are fairly common in landscape settings. This angular product, in various sizes, has great aesthetic value. It suits rock gardens, pathways, and erosion control structures. The rough texture of the aggregate will inhibit slipping.
Advantages and Disadvantages of Irregular Aggregates
Advantages of Using Irregular Aggregates
- Better Interlocking: The shape of these aggregates is irregular. It allows for better interlocking and stability in the construction material.
- Moderate Cost: Irregular aggregates are cheaper than angular ones. So, they are moderately costly for most construction projects.
- Versatility: These aggregates have many uses, from making concrete to landscaping.
Limitations of Irregular Aggregates
- Higher Water Demand: A large surface and high void content raise the water-cement ratio. This reduces workability.
- Low Durability in High-Stress Applications: Irregular, medium-strength, low-abrasion aggregates are unsuitable for high-stress uses, like heavy pavements.
- Inconsistent Size: Natural irregular aggregates vary in size and shape. They require further grading to achieve a uniform size for construction.
Conclusion
Irregularly shaped aggregates have a mix of qualities. They suit specific construction projects. Their angular shape and rough texture improve interlocking. So, they are ideal for concrete and road work. But, their high void content and low durability make them unsuitable for tough tasks. Engineers and builders can now use irregular aggregates. They know their specific properties and limits. This helps meet construction needs for stability, low cost, or both.
