A flat slab is a reinforced concrete structure that is directly supported by columns without any beams. The columns that support the slab are usually thick around the point of intersection, which provides improved strength. This system is widely adopted in the contemporary construction of high-rise buildings because it provides an unobstructed ceiling and flexible design features. There are generally four types of flat slabs in construction, and each of them has its unique properties and applications. Here we take a deep dive into the different types of flat slabs.
Types of Flat Slab

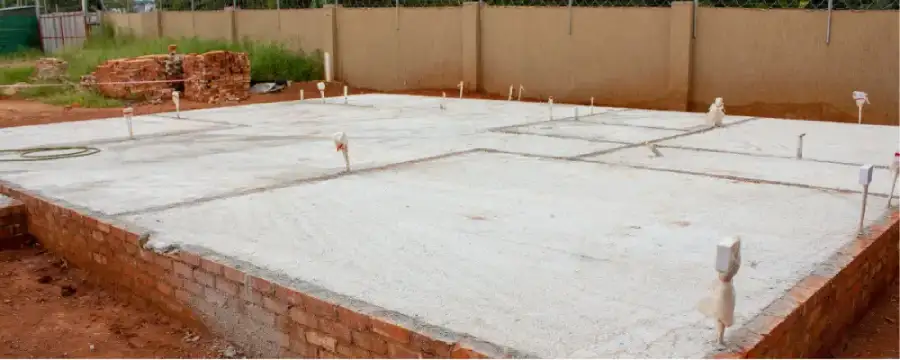

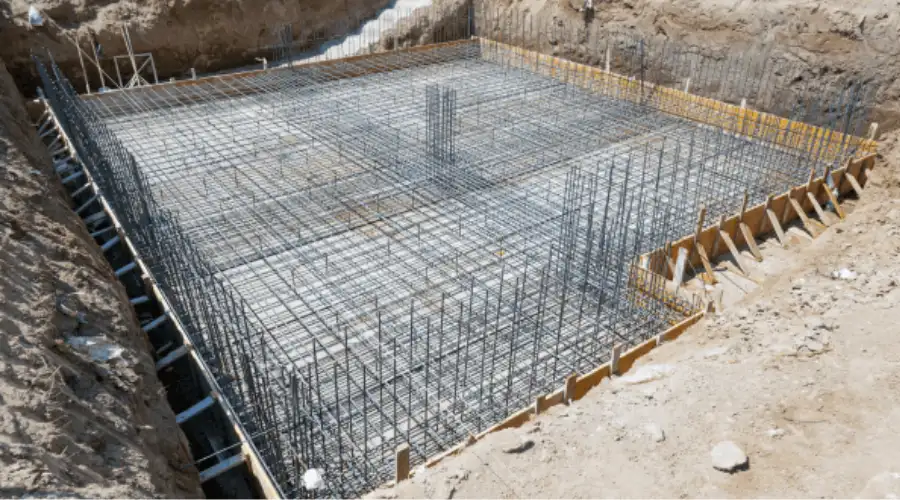

Simple Flat Slab
It is a type of slab, with a simple concrete floor system that is directly resting on columns, without the use of beams. This slab has a uniform thickness throughout the surface, without any thickened areas around the columns. It allows the direct distribution of loads to the supporting columns and does not require any drop panels or column heads.
It gives a clear ceiling space with minimal interruption. The simple and uniform design makes it easier and faster to construct. However, its load-bearing capacity is comparatively low, making it ideal for buildings with moderate load requirements, having smaller to medium spans.
Flat Slab with Drop Panels
It is a two-way reinforced concrete slab supported by columns with thick drop panels above that provide improved strength and stability to withstand shear forces. It is highly flexible and easy to construct, due to the absence of beams. The integrated structure is suitable for the construction of high-rise buildings, where large open spaces and minimal structural interference are crucial.
Flat Slab with Column Heads
A flat slab with column heads is a two-way reinforced concrete structure, where the flat slab rests directly on the columns that have enlarged column heads. The large column heads help in the effective distribution of loads, and combat pointed shear forces. The absence of beams gives uninterrupted open spaces and design flexibility, making it ideal for commercial buildings, office spaces, and multi-storey structures.
Flat Slab with Drop Panels and Column Heads
It is a combination of flat slabs with both drop panels and column heads, that provides maximum stability and load-bearing capacity. The combined approach helps support heavier loads and longer spans, for effective structural functioning, suitable for a wide range of applications including residential, commercial, industrial, parking garages, and high-rise structures.
Advantages and Disadvantages of Flat Slabs
Advantages
- It offers a clean and unobstructed ceiling, that helps in maximum usage of both the interior and exterior space.
- The absence of beams maximises the ceiling height, giving ample space for headroom, and giving a spacious feel.
- The open-floor layout allows greater flexibility in designing the slab and in the placement of columns for effective load distribution.
- It does not require separate formwork for beams, which increases the construction speed and reduces the cost spent on formwork.
- The clear and open surface distributes light evenly throughout the space, which helps in enhancing the overall appearance of the building.
- Other than the simple flat slab, all the flat slab types possess the strength and stability to withstand heavier loads.
- It offers better fire resistance due to its uniform thickness, ensuring consistent protection.
- The flat floors simplify the installation of mechanical, electrical, and fire suppression systems, due to its uninterrupted beamless design.
Disadvantages
- The flat slabs are significantly thicker compared to the beam-slab system, requiring more concrete consumption for construction.
- It does not possess the ability to withstand bending moments in larger spans, thus requiring effective slab depth or larger drop panels or columns.
- It is vulnerable to lateral forces caused by wind, earthquakes, and seismic activities.
- Flat slabs with drop panels and column heads may obstruct mechanical ducting and other systems that require careful designing.
- Designing a flat slab with column heads or drop panels may be complex, as it requires careful calculation and analysis of shear strength.
- The slab span is limited due to loads and other factors that affect the efficiency of the structure.
Applications of Flat Slabs
- Flat slabs are ideal for high-rise buildings, where larger spans and higher load-bearing capacity are crucial.
- They are highly suitable for commercial buildings such as shopping malls, office working spaces, and other commercial structures that require open, flexible floor plans with large spans.
- Flat slabs are used in industrial structures such as factories and warehouses, where supporting heavy machinery and equipment is crucial.
- The increased strength and load-bearing capacity of the slab makes it suitable for multi-story parking garages.
- They are suitable for short to medium-span bridges and flyovers, where weight distribution is limited, favouring smooth and uninterrupted transitions.
- They are highly suitable for hospitals and healthcare facilities, where flexible design for equipment installation, maximum utilisation of space, and minimal obstruction are crucial.
- They are ideal for places with high foot traffic, such as hotels, airport terminals, stadiums, arenas, community centres, lounges, waiting rooms and more.
Conclusion
In summary, flat slabs are versatile construction elements that are used for various buildings. Simple flat slabs are suitable for smaller structures where load bearing is moderate. Flat slabs with drop panels have high strength around the column areas, making them ideal for longer spans and places with high load demands. Flat slabs with column heads offer enhanced load distribution and stability. Flat slabs with both drop panels and column heads offer maximum strength and are ideal for all types of buildings. We hope this blog helps you understand the types of flat slabs and clarifies the doubts about which type best suits your construction needs.
