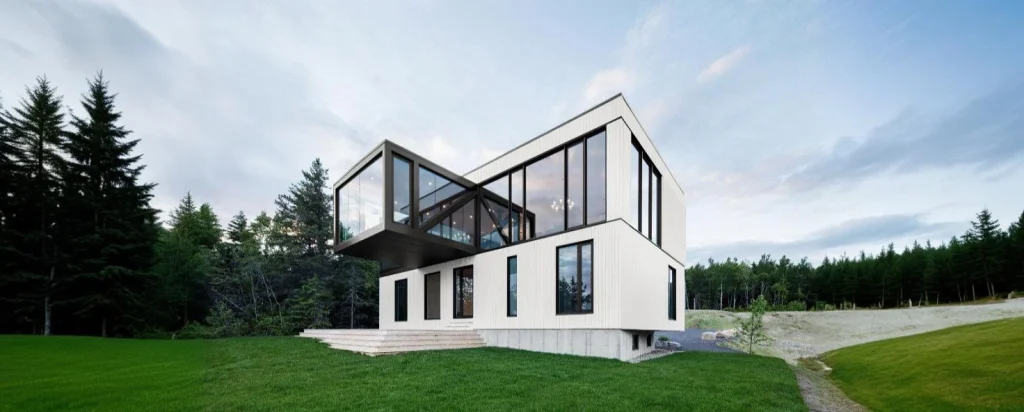

Have you gotten bored with regular house designs? Do you want to create distinctive and dramatic forms? Then, go with the cantilever house designs, one of the innovative architectural designs. Their speciality is the structural elements extending horizontally apart from their supports, making you feel the house is floating in the air.
Read more to understand more about cantilever house designs.
What is Cantilever House Design?
This is a gravity-defying architectural structure where the house’s structural elements are supported at one end while carrying an extended mass. This modern cantilever house design presents a clear space beneath the beam without supporting columns or bracing, giving it a unique design feel.
American architect Frank Lloyd Wright is called a pioneer in cantilevered architecture, creating his concept of the duality of space. Like other countries, India also started to integrate engineering advancements into their designs, leading to innovative cantilevered constructions.
Why Choose a Cantilever House Design?
Compared to regular houses, a cantilever house design can offer many advantages suiting modern architectural requirements; the major benefits of cantilever houses are:
Unique Attractiveness: The modern cantilever house design gives it an attractive appearance. Their design often includes bold, striking forms with proper structural engineering to defy gravity. Hence, this style is common in urban settings.
Efficient Use of Space: Cantilever architecture designs are best suited for small or irregular plots. As it extends beyond their foundations, they create usable outdoor areas like balconies without additional ground support.
Useful in Uneven Sites: Cantilever floating house designs are very practical on sloped or uneven sites. Elevated cantilevered sections give wide, open views of the area around the house. This makes them great for homes near lakes, mountains, or city skylines.
Structural Benefits: Cantilevered house designs give design flexibility and structural benefits. They can be built without the need for obvious support posts, allowing for open floor plans and more versatile layouts customised to specific needs.
Structural Considerations for Cantilevered House Designs
While working on cantilevered house designs, you need to consider the following major factors to ensure safety:
Load distribution: A cantilevered structure has to safely transfer loads from the free end to the anchored support. This requires careful planning to balance the forces acting on the beam. You need to analyse and evaluate both live loads and dead loads, along with the weight of the materials used in construction.
Material Selection: The material you choose can considerably impact the house design. Structural engineers often suggest materials like reinforced concrete or steel with high tensile strengths, as they can withstand the bending stresses induced by the cantilever’s unsupported sections.
Cross-Sectional Shape of Beam: You need to choose a suitable cross-sectional shape beam, like an I-beam, to enhance the load-bearing capacity and reduce deflection.
Anchorage: The fixed point where the cantilever meets the supporting structure is anchorage. It must be strong enough to absorb the stresses caused by overhanging sections.
Environmental Factors: The design needs to consider environmental factors like wind, which can exert lateral loads, pushing the structure sideways and affecting its strength.
How Far Can a Residential Cantilever Extend Safely?
In India, the safe length of a cantilever in homes follows IS 456:2000 (Plain and Reinforced Concrete Code) and depends on structural calculations rather than fixed limits. Here’s a breakdown:
The following are factors influencing maximum cantilever length
Effective Depth of Slab (d):
This is the distance from the steel reinforcement to the top of the slab. A deeper slab and stronger concrete allow a longer cantilever. IS 456:2000 gives formulas to calculate permissible spans based on d, concrete strength (fck), and reinforcement design. For example:
Maximum length ∝ d × √fck
This relationship highlights that thicker slabs with higher-grade concrete allow longer cantilevers.
Loads on Cantilever:
Dead loads of building (self-weight) and live loads (occupants, furniture) determine reinforcement needs. Residential balconies typically take a live load of 3 kN/m² as per standards.
Longer cantilevers need thicker slabs and stronger reinforcement.
Material Properties:
Concrete grade: M20 to M30 is common for residential projects.
Reinforcement: Steel bars (Fe415/Fe500) enhance tensile strength. Proper spacing and anchorage into the support structure are mandatory.
Typical Residential Applications:
Balconies: Usually extend 1.2–2 meters, depending on slab thickness and reinforcement.
Chajjas (sunshades): Often limited to 0.6–1.2 meters due to lighter loads.
Practical Limits and Code Guidance
IS 456:2000 does not specify universal limits for cantilever extensions; instead, it emphasizes case-specific engineering analysis to tailor designs to individual conditions and requirements.
For expansion joints in cantilevered elements like balconies, IS 3414:1968 recommends spacing them at intervals of 6 to 12 meters, depending on the specific design and use case.
Planning and Building a Cantilever House
The cantilever house construction is a vast procedure including the following steps:
Site Selection: Choosing the site is a very important step. Analyse the soil type, topography, drainage patterns, and climatic conditions. This study will help you plan the house and design structural elements.
Choose the Right Architect and Engineer: To make your dream a reality, you must hire the right architect and engineer carefully. Select professionals who have sufficient experience in cantilever structures and a deep understanding of local building practices.
Budgeting and Cost Considerations: Consider all necessary expenses, such as materials, labour, and permits. The average cost of constructing a cantilevered house can vary based on different factors such as location, complexity, and the quality of materials selected.
Initial Planning and Design Phase: Consider and make a list of your requirements and preferences. Based on your requirements and site layout, the architect and structural designer will design a plan with effective functionality and aesthetic appeal.
Permits and Regulations: You should always obey local building codes and get necessary clearance from municipal authorities. These building codes can vary from one region to another. Hence, get support from your architect or engineer and achieve permits from the National Building Code (NBC) for seismic and safety norms. Achieve environmental clearances for floodplains or coastal zones.
Challenges to Consider in Cantilever Architecture
Although cantilever houses offer numerous benefits, some challenges are there:
- Higher Construction Costs: The cantilever house’s safety involves complicated structural design. You have to work with expert structural engineers and use high-quality materials. Therefore, cantilever house costs are usually very high compared to regular houses.
- Technical Expertise: The design and construction process demands skilled architects, engineers and labourers to ensure safety and durability. A small, single mistake can spoil the whole structure.
Maintenance of Cantilever House
For maintenance, you can do regular inspections to identify potential problems such as water ingress, structural deflections, or material wear. You can regularly clear drainage systems, inspect steel or concrete beams for corrosion or cracks, and repaint exposed elements every 5-10 years to avoid weather-induced damage.
Popular Cantilever Houses in India
The following are some examples of cantilevered houses:
1. Cantilever House by ZED Lab in Ghaziabad
This cantilevered house includes a master bedroom, offering expansive front lawn views and controlled sunlight exposure. Passive cooling techniques, vertical gardens, and water courts insulate the home from harsh weather conditions. Designed for a family of four, it uses regional vernacular elements to reduce environmental impact, ensuring family comfort.
2. Cantilever House in Kerala by S Squared Architects
This house is constructed near the Muvattupuzha River in Cochin, Kerala. This flood-resistant house coordinates with its natural surroundings. It features an 11-meter cantilever supported by RCC hollow box beams and under-reamed pile foundations for stability. Energy-efficient strategies include passive cooling and double-skinned walls for thermal insulation. The design maximises the visibility of the river and paddy fields while maintaining a futuristic aesthetic.
This floating house design is a combination of creative ideas and smart engineering. You can choose this unique construction style in elevated areas or sites where regular building design won’t work. You can build a long-lasting cantilever house by selecting high-quality materials and building methods. Always hire experienced architects and structural engineers or work with professional construction companies like Brick & Bolt to build whole living spaces hanging over a cliff.
